[Experimental] Manual Fan Control

Hello fellow community,

Recently I have discovered a way to directly set fan speed in percentage points for each fan individually.
It uses same method as MyASUS does when runs your "fan testing".

In existing and standard way to set a "custom" fan curve - fan behavior would be still handled by BIOS and follow it's internal algorithm. This BIOS algorithm is different for different models, sometimes includes a very high hysteresis (delays before acting), can override some custom fan behavior, etc.

In "alternative" approach, it's possible to actually literally manually set fan speed every second based on temperature readings.

This build implements "manual" fan control as soon as you check Apply Custom Fan Curve, when you uncheck it - fan behavior will be returned back to BIOS.

Current implementation details

  • More precise fan speeds, following custom fan curve as close as possible

  • Fan speeds are being updated every second

  • CPU and GPU temps are calculated as an average from last 6 seconds (can be set via config)

  • CPU fan follows CPU temp, GPU fan follows GPU temp, Mid fan follows CPU temp

  • If GPU temp is not available by some reason (for example GPU is disabled or sleeping) - GPU fan will follow CPU temp instead

  • If CPU temp is also not available by some reason - fan behavior will be returned back to BIOS defaults

  • Minimum fan speed is 20% unless it's set to OFF completely (similar to how BIOS handles this)

  • Maximum fan speed is 100%

  • Fan speed will follow line between dots, not only dots themselves

  • Fans will react on temp change almost immediately

Potential downsides and risks

  • If you quit application incorrectly during manual fan control, fans may keep running on last used speed and will not react on temperature changes

  • No idiot-protection. If you set fan speeds to be low, they will be low and your device will heat up quickly

Please test on your own risk (!) and only as a last resort in case you can't achieve desired fan behavior otherwise

Possible params for config.json (with their default values)

"fan_min": 20, - minimum fan speed (in %) when it's not OFF
"fan_hysteresis": 6, - number of seconds to calculate average CPU / GPU temp (set 1 for instant reaction)
"fan_shift" : 50, - weighted average coefficient between CPU (or GPU) temp and MAX(CPU,GPU) temps in a range from 0 to 100

  • If you want GPU (CPU) fan to follow only GPU (CPU) temp, leave it as is

  • If you want GPU (CPU) fan to follow MAX(CPU,GPU) temps, set it to 100

  • If you want GPU (CPU) fan to follow average between GPU(CPU) and MAX(CPU,GPU) set it to 50, etc :)

If you see a big (more than 500RPM) difference between fan curve and actual readings - try to click Calibrate, it will run a quick measurement process and adjust Y-axis to match actual maximum RPMs

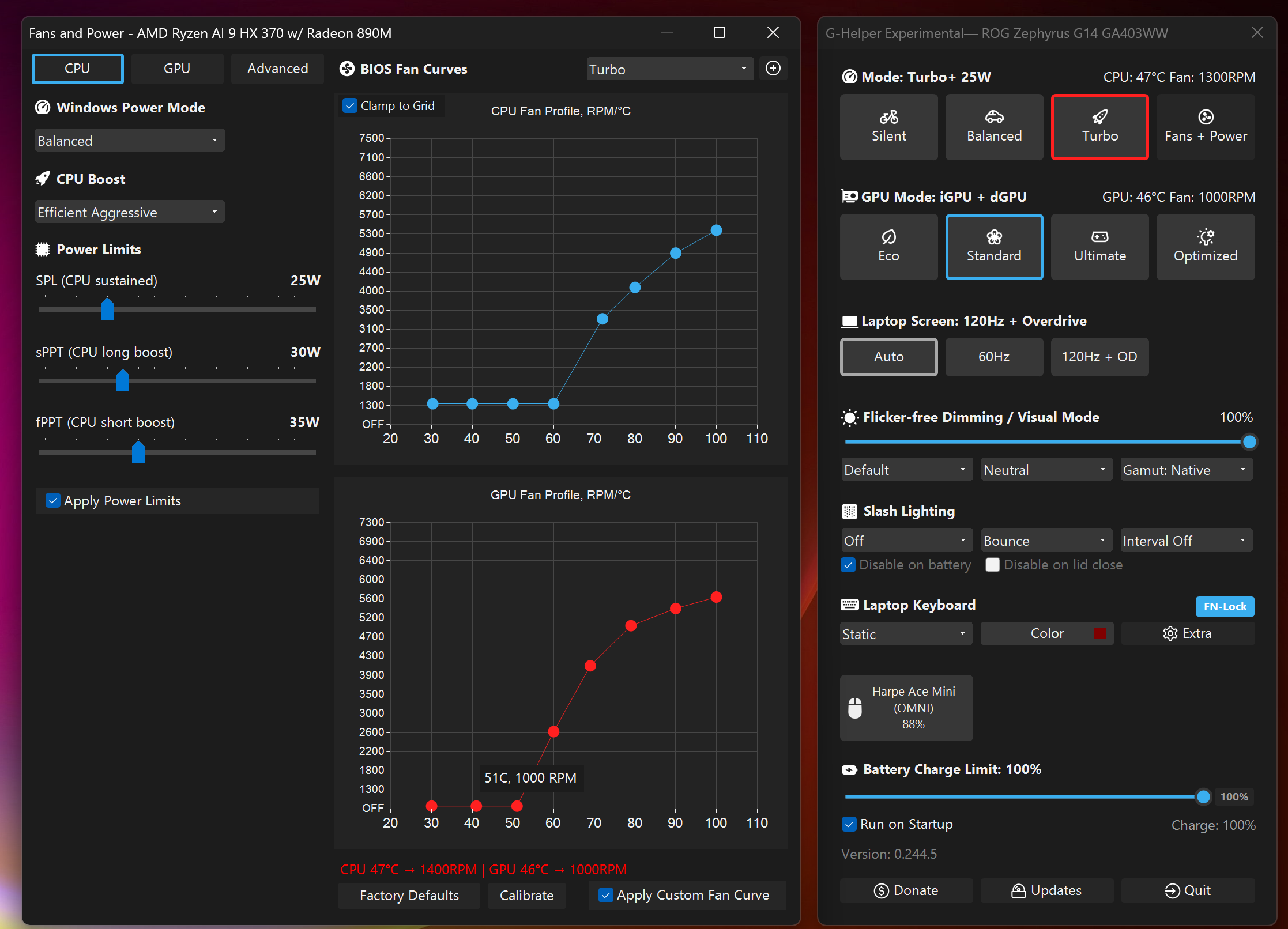

You will see what is actually being set as your fan speeds on Fans+Power screen under fan curves chart. Don't forget to click Apply.

Laptop fan and power settings with graphs for CPU and GPU fan curves, showing RPM vs temperature, and options for performance modes, visual modes, and screen refresh rate.
